A Printed Circuit Board is a means of interconnecting components both mechanically and electrically. The printed circuit “board” is a rigid or flexible structure on which components are mounted. These components are mounted through holes in the board and are held in place with solder.

Circuit configurations and layout design accomplish electrical connections among the various components.

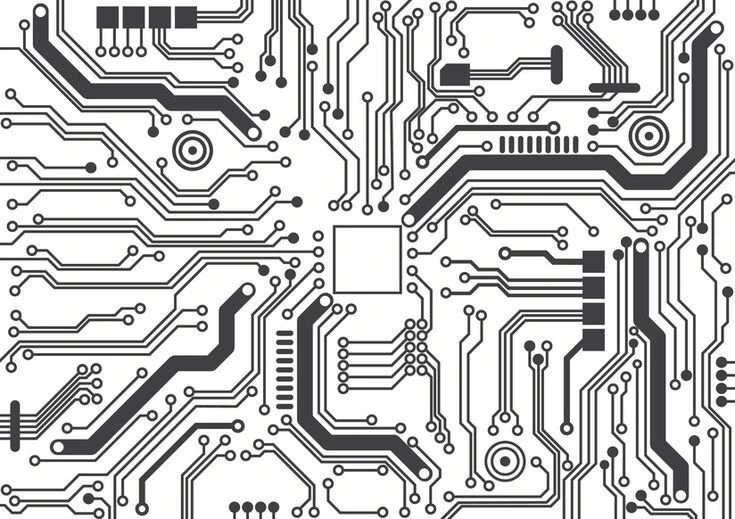

PCB film has a layout design printed on it.

This film layout is printed and etched on the boards. These boards have holes with conductive plating inside them that carries the current from one side of the board to the other. This process is for PTH Board.

Rigid printed circuit boards are the most common type used in the industry. The base material for rigid printed circuit boards is called laminate and is composed of layers of paper/fibreglass cloth bonded together with various resins.

The printed circuit board manufacture will process this laminate according to the specifications of the buyer’s documentation. The result is a custom-made printed circuit board.
