PCB Manufacturing Services for Gurgaon and Gurugram

Gurgaon is home to automotive businesses, embedded-product developers, electronics startups, industrial manufacturers, engineering companies and technology-focused enterprises. These businesses often require custom printed circuit boards for new-product development, equipment manufacturing, design validation, testing and recurring production.

RAPID CIRCUIT supports these requirements through a structured PCB manufacturing process. We work with customers who already have production-ready Gerber files as well as companies that require PCB design, CAM preparation or manufacturing-data review before fabrication.

Our PCB services for Gurgaon businesses include:

• Custom PCB manufacturing
• Prototype PCB fabrication
• Production PCB manufacturing
• Single-layer PCBs
• Double-layer PCBs
• Multilayer PCBs
• PCB design and layout services
• PCB CAM services
• Gerber file review
• Drill and routing data review
• Panelisation support
• Manufacturing-specification confirmation

PCB requirements from Gurgaon and Gurugram are coordinated through RAPID CIRCUIT’s manufacturing and technical operations in Rajkot, Gujarat, with completed boards dispatched to the customer’s confirmed address.

Why Gurgaon Businesses Need Reliable PCB Manufacturing Support

PCB manufacturing is an important stage in the development and production of electronic products. Even a well-designed circuit may face manufacturing problems when the Gerber files, drill data, board outline, layer information or production specifications are incomplete or unclear.

A dependable manufacturing partner should therefore support the buyer before, during and after fabrication.

Faster Product Development and Design Validation

Embedded-product developers and electronics startups frequently need prototype PCBs to test a new circuit before moving to regular production. Prototype fabrication allows engineers to verify the board dimensions, component placement, circuit behaviour, mechanical fit and overall product design.

When a design requires improvement, revised Gerber files can be submitted for the next prototype version. This process helps development teams identify issues before committing to larger production quantities.

Consistent Support for Production Requirements

OEMs and manufacturing companies need more than a one-time prototype. They often require repeated PCB production against approved design files and specifications.

Important details such as the PCB material, layer count, board thickness, copper thickness, solder-mask colour, legend colour, surface finish, hole sizes and delivery format should remain clearly documented for repeat orders.

RAPID CIRCUIT supports prototype and production requirements based on customer-approved manufacturing data.

Technical Review Before Manufacturing

Gerber files are the primary manufacturing files used for PCB production. Before fabrication begins, the supplied data should be checked for basic manufacturing information such as:

• Copper layers
• Solder-mask layers
• Legend or silkscreen layers
• Drill files
• Board dimensions
• Routing or profile data
• Layer count
• Panel requirements
• Quantity
• Material and thickness
• Surface finish
• Special manufacturing notes

If any important information is missing or unclear, clarification may be required before production.

PCB Support for Gurgaon's Key Industries

The PCB requirements of a company depend on its products, application environment, expected production volume and technical specifications. RAPID CIRCUIT supports custom PCB requirements for a range of electronics and manufacturing applications.

Automotive Electronics

Gurgaon and the Manesar industrial region have a strong automotive and automotive-component manufacturing presence. Electronic systems are increasingly used in vehicle controls, sensors, lighting, testing systems, power-control applications and diagnostic equipment.

PCB applications associated with automotive electronics may include:

• Sensor interface boards
• Lighting-control circuits
• Testing and diagnostic equipment
• Battery-monitoring systems
• Power-control electronics
• Display and indication systems
• Motor-control circuits
• Communication interfaces

Automotive-related PCB requirements should be reviewed according to the exact design data, material specifications, operating environment and quality requirements provided by the buyer.

RAPID CIRCUIT does not claim automotive certification unless a specific certification is formally verified and applicable to the order.

Embedded Products

Embedded systems combine electronic hardware and programmed control to perform a specific function. PCB quality and design accuracy are important because the circuit board connects the controller, communication interfaces, sensors, power section and other hardware elements.

We can support PCB requirements for embedded applications such as:

• Microcontroller-based products
• IoT devices
• Monitoring systems
• Control panels
• Communication products
• Industrial controllers
• Data-acquisition devices
• Electronic testing equipment
• Custom automation products

Product developers can submit their Gerber files and specifications for prototype or production review.

Electronics Startups and Product Developers

Electronics startups often work through several stages before finalizing a product. These stages may include circuit development, PCB layout, prototype manufacturing, functional testing, design correction and production planning.

RAPID CIRCUIT can support startups and product engineering teams with:

• PCB layout support
• Prototype PCB fabrication
• Gerber and CAM review
• Revised prototype manufacturing
• Low-volume initial production
• Transition from prototype to production
• Repeat PCB fabrication against approved files

The customer should clearly identify the latest file revision before placing a repeat or production order.

Industrial Electronics and Automation

Industrial electronic systems may require PCBs for control, monitoring, sensing, indication, communication and power-management functions.

Possible applications include:

• Industrial control boards
• Automation equipment
• Process-monitoring systems
• Power-control units
• Machine-interface boards
• LED indication systems
• Sensor circuits
• Testing instruments

Each requirement should be evaluated using the actual PCB files and manufacturing specifications.

PCB Supply Support for Udyog Vihar and IMT Manesar

RAPID CIRCUIT serves businesses in Gurgaon's important commercial and manufacturing areas, including Udyog Vihar and IMT Manesar.

Requirements from Udyog Vihar and IMT Manesar are coordinated through RAPID CIRCUIT’s Rajkot operations, with quotation, manufacturing and dispatch handled remotely.

PCB Support for Udyog Vihar Businesses

Companies in and around Udyog Vihar may require PCBs for product engineering, embedded devices, electronic equipment, testing systems and industrial applications.

RAPID CIRCUIT supports Udyog Vihar businesses with:

• Prototype PCB manufacturing
• Custom PCB fabrication
• PCB design and layout
• CAM engineering
• Gerber review
• Single and double-layer PCBs
• Multilayer PCB requirements
• Production PCB supply

Customers can submit their files digitally for review, clarification and quotation through RAPID CIRCUIT’s Rajkot operations.

PCB Support for IMT Manesar Manufacturers

IMT Manesar is an important manufacturing area with automotive, engineering, industrial and component-production activity.

Manufacturing companies in this region may require printed circuit boards for:

• Automotive electronic systems
• Industrial equipment
• Testing devices
• Embedded control products
• Sensor applications
• Production machinery
• Power and control circuits
• Custom electronic assemblies

RAPID CIRCUIT can review Gerber files and manufacturing requirements for prototype, initial production and repeat-production orders.

Custom PCB Manufacturing

Every PCB design may have different dimensions, layers, hole sizes, copper patterns, board profiles and production requirements. Custom PCB manufacturing allows the board to be produced according to the customer's approved Gerber files and technical specifications.

Before requesting a quotation, customers should provide:

• Gerber files
• Drill files
• PCB quantity
• Board dimensions
• Number of layers
• Base material
• PCB thickness
• Copper thickness
• Solder-mask colour
• Legend colour
• Surface finish
• Delivery format
• Panel requirements
• Required delivery schedule
• Special instructions

Providing complete information helps reduce delays during quotation and manufacturing review.

PCB Materials and Manufacturing Specifications

The appropriate PCB construction depends on the circuit design, electrical load, operating conditions, mechanical strength, heat dissipation, assembly process and cost target of the final product. RAPID CIRCUIT reviews the customer’s Gerber files and manufacturing specifications before confirming the material, board thickness, copper requirement, surface finish and profiling method.

Base Materials for Different PCB Applications

FR4 is commonly considered for industrial controls, embedded products, double-layer boards and multilayer constructions that require dependable electrical insulation and mechanical strength. For suitable cost-sensitive single-layer applications, CEM-1, FR-1 and XPC paper-phenolic laminates may also be considered.

CEM-3 may be reviewed for technically suitable PCB constructions. Metal-core aluminium PCBs can be considered where heat dissipation is important, including selected LED-lighting and power-electronics applications. Material availability and suitability should be confirmed against the board design, thickness, quantity and manufacturing process.

PCB and Copper Thickness Selection

Board thickness affects mechanical strength, product fit, connector compatibility and the available space inside the equipment. Depending on the selected material and design, thickness options may include 0.4 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm, 2.4 mm and 3.2 mm. A 1.6 mm board is widely used, while thinner or thicker constructions may be selected for specific mechanical or product requirements.

Copper thickness is commonly specified by copper weight. Typical requirements may include 1 oz, approximately 35 μm; 2 oz, approximately 70 μm; and 3 oz, approximately 105 μm. Copper weight should be selected according to current-carrying requirements, track dimensions, thermal considerations and manufacturing feasibility.

Increasing copper thickness can affect achievable track width, spacing, hole plating and the overall manufacturing process. The copper requirement should therefore be reviewed together with the Gerber data rather than selected independently.

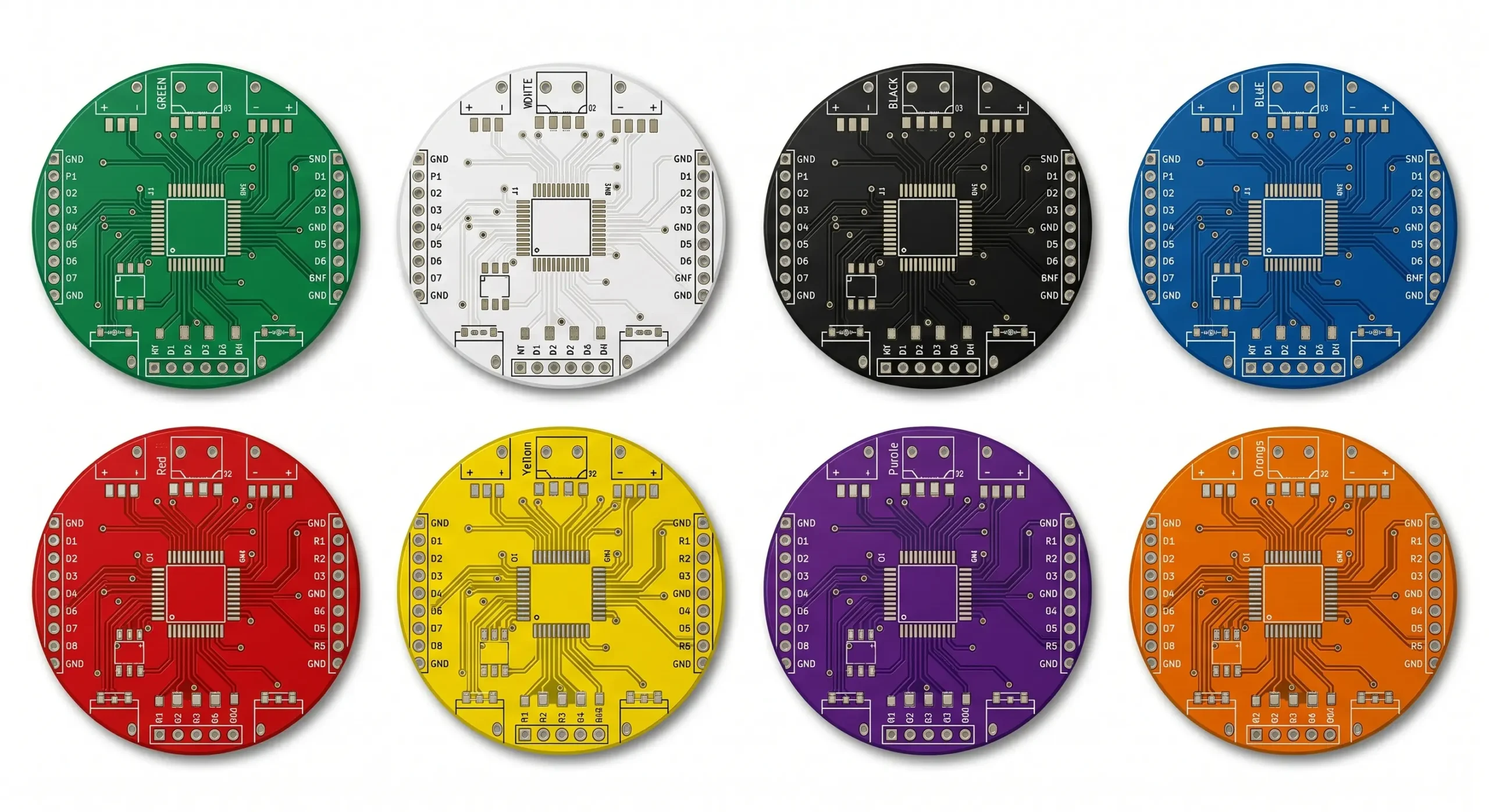

Solder-Mask and Legend Colours

Solder mask protects the copper circuitry and helps reduce the risk of solder bridging during assembly. Green is commonly selected, while white, black, blue, red and other confirmed solder-mask colours may be available according to the material and production requirement.

The legend, also called the silkscreen, is used for component references, polarity markings, identification text and assembly information. White and black are commonly selected for clear contrast, while blue, red or other confirmed legend colours may be considered for specific product requirements. The colour combination should allow printed markings to remain readable against the solder mask.

PCB Surface-Finish Options

The surface finish protects exposed copper pads and provides a solderable surface for component assembly. Depending on the PCB type, application and confirmed production process, options may include roller tin, tin-lead HASL, lead-free HASL and OSP.

Protective lacquer may be considered for suitable single-layer or cost-sensitive applications, but it should be treated separately from solderable metallic finishes such as HASL. Customers requiring lead-free or RoHS-compliant PCBs should state the complete compliance and documentation requirements when requesting a quotation, because lead-free HASL alone does not confirm compliance of the complete PCB.

Board Profiling and Panel Separation

The PCB outline and delivery format influence the most suitable profiling method. CNC routing can be used for individual boards, internal slots and complex profiles. V-scoring, also called V-cutting, is generally considered for panelised boards with straight separation lines.

Precision punching may be suitable for compatible single-layer materials and repeat board profiles where the design, tolerances and quantity justify the process. The final method depends on the base material, board thickness, outline complexity, panel arrangement and dimensional tolerances.

Single-layer PCBs have a conductive copper pattern on one side of the board. They are commonly used for comparatively simple electronic circuits and cost-sensitive applications.

Depending on the application and production method, single-layer boards may use FR4, CEM-1, FR-1, XPC or another confirmed material. CNC routing, V-scoring or precision punching may be considered according to the material, board profile, quantity and required dimensional tolerance.

Possible applications include:

• LED products
• Power-supply circuits
• Control panels
• Consumer electronics
• Relay boards
• Display circuits
• Simple automation products

The suitable base material, board thickness, copper requirement and finish should be selected according to the application.

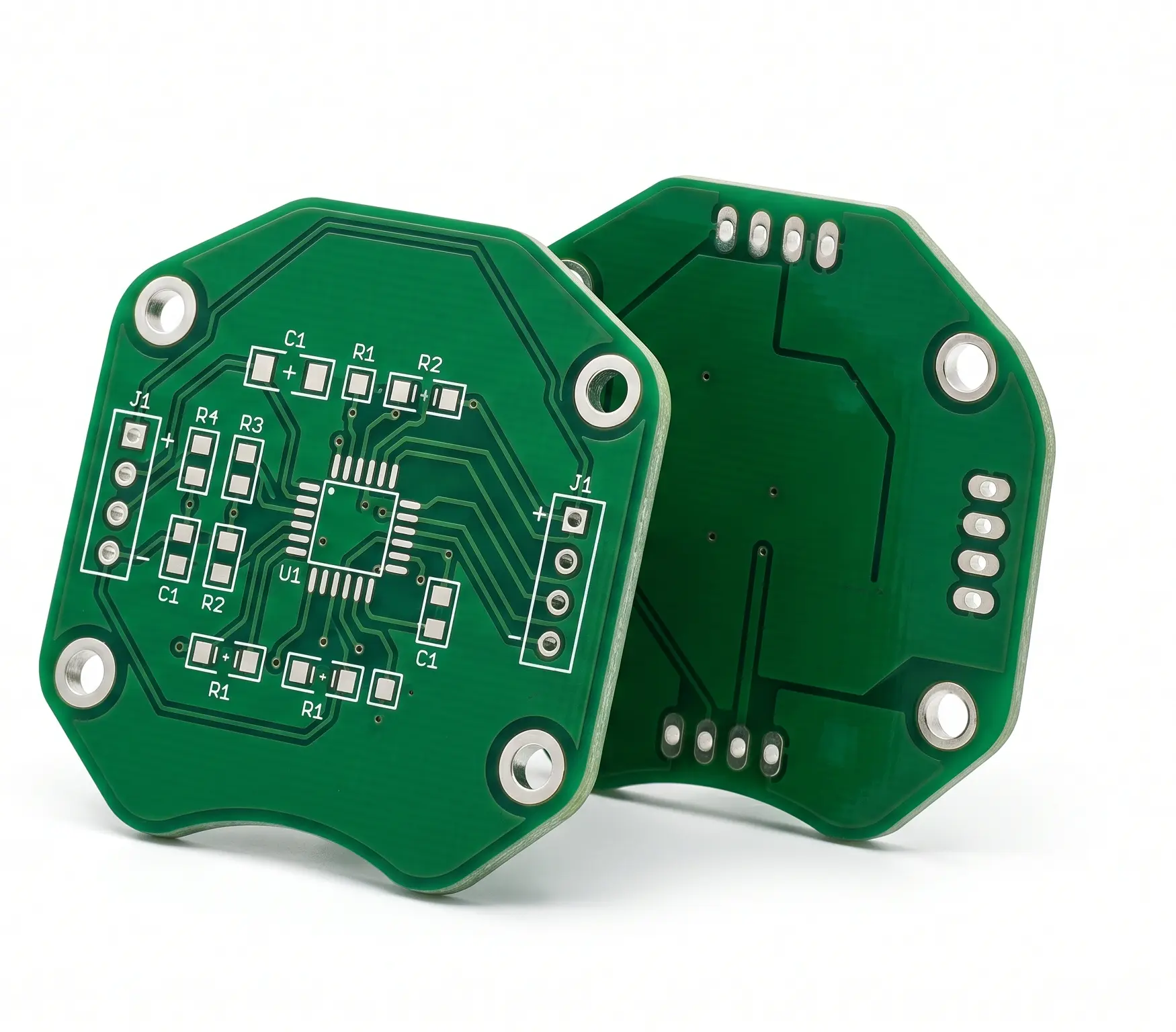

Double-layer PCBs have copper circuitry on both sides of the board, with plated-through holes used to connect the layers where required.

FR4 is commonly considered for double-layer plated-through-hole boards, while selected CEM-3 constructions may be reviewed where technically suitable. Board thickness and copper weight should be confirmed according to the electrical, thermal and mechanical requirements.

They are suitable for designs that require:

• Higher circuit density
• More routing space
• Connections on both sides
• Compact board dimensions
• Improved layout flexibility

Double-layer PCBs are frequently used in embedded systems, industrial controls, automotive electronics, communication devices and power-control products.

Multilayer PCBs contain multiple conductive layers arranged within a controlled board stack-up. They are used where the design requires greater circuit density, compact dimensions or dedicated internal layers.

Multilayer PCB manufacturing requires clear information regarding:

• Total layer count
• Layer sequence
• Stack-up
• Finished board thickness
• Copper requirements
• Drill data
• Via structure
• Board dimensions
• Surface finish
• Special impedance or technical requirements

Multilayer boards generally require a confirmed FR4 construction, layer stack-up, finished thickness, copper distribution and drill specification. These details should be reviewed together because changing one parameter can affect the overall board construction.

All advanced specifications should be discussed and confirmed before production.

Prototype PCB manufacturing helps engineers evaluate a design before placing a production order.

Prototype boards can be used to check:

• Circuit functionality
• PCB dimensions
• Mechanical fitting
• Hole placement
• Connector positions
• Component footprint compatibility
• Assembly feasibility
• Product enclosure compatibility
• Design improvements

For accurate prototype manufacturing, customers should submit the latest Gerber files and clearly mention the required quantity and specifications.

After testing the prototype, the design may be approved, revised or prepared for production. When files are revised, they should be submitted with a clear revision name or number to prevent confusion with an earlier version.

Production PCB Support for Gurgaon OEMs and Manufacturers

Once a PCB design has been tested and approved, the requirement may move into production.

Production PCB orders require careful control of:

• Approved Gerber revision
• Board specifications
• Quantity
• Panel format
• Material
• Thickness
• Copper
• Solder mask
• Legend
• Surface finish
• Drill sizes
• Routing data
• Testing requirements, where included in the confirmed order scope
• Packaging and dispatch instructions

Repeat PCB Production

For repeat orders, the buyer should confirm whether the design and manufacturing specifications remain unchanged.

If the circuit, board outline, hole size, panel format or any other specification has changed, updated files should be supplied and clearly identified.

Prototype-to-Production Transition

Before moving from prototype to production, engineering and procurement teams should verify:

• The final design revision
• Functional test results
• Mechanical fit
• Component footprint accuracy
• Board dimensions
• Required production quantity
• Panelisation requirements
• Manufacturing specifications

A properly managed transition reduces the risk of producing a larger quantity from an outdated or unapproved file.

PCB Design and Layout Services

Some customers have a circuit concept or schematic but do not yet have manufacturing-ready PCB files. RAPID CIRCUIT provides PCB design and layout support for suitable projects.

The design process may include:

• Requirement review
• Schematic review
• Component-footprint preparation
• Board-outline setup
• Component placement
• Track routing
• Power and ground planning
• Design-rule checking
• Gerber-file generation
• Manufacturing-data preparation

The exact design scope should be agreed upon before starting the project.

Customers should provide complete information such as the schematic, component details, board dimensions, connector locations, mechanical restrictions, power requirements and any special design instructions.

PCB CAM and Gerber File Review

PCB CAM work prepares and checks manufacturing data before the files are released for production.

The review may include the following areas.

Gerber Layer Review

The submitted Gerber package should contain the required copper, solder-mask, legend and board-profile data.

Drill Data Review

Drill files should contain the correct plated and non-plated hole information where applicable. Hole sizes should be clearly defined and suitable for the intended component leads, connectors and mechanical fittings.

Board Outline and Routing Review

The PCB profile should be complete, unambiguous and consistent with the stated board dimensions.

Irregular shapes, internal cut-outs, slots and special routing instructions should be clearly identified.

Panelisation Review

When PCBs are required in a panel, the buyer should provide or approve information such as:

• Number of boards in the panel
• Rows and columns
• Panel border
• Spacing
• CNC routing, V-scoring or other panel-separation requirement
• Breakaway method
• Tooling holes
• Reference marks
• Delivery format

Manufacturing Clarification

If the Gerber data conflicts with the written specifications, clarification should be obtained before production.

A manufacturing review does not automatically verify the electrical correctness of the complete circuit unless schematic comparison, netlist verification or another specific electrical-design review is included in the agreed scope.

PCB Delivery Support for Gurgaon and Delhi NCR

RAPID CIRCUIT manufactures PCBs from Rajkot and arranges dispatch for customers in Gurgaon, Gurugram, Udyog Vihar, IMT Manesar and other locations in Delhi NCR.

The delivery process may include:

1. Completion of manufacturing
2. Quality and quantity verification
3. Suitable packing
4. Courier or transport booking
5. Shipment details shared with the customer
6. Delivery to the provided address

Delivery time depends on the destination, shipment method, courier service and order requirements. Customers with a fixed project schedule should mention their required delivery date when requesting the quotation.

The delivery address, contact number, company name and tax details should be checked carefully before dispatch.

Why Choose RAPID CIRCUIT for Your Gurgaon PCB Requirement?

PCB Quality and Inspection Process

PCB quality depends on correct input data, controlled manufacturing and suitable inspection.

The applicable review and inspection stages may include:

Manufacturing-Data Verification

Gerber files, drill data, dimensions, layers and production notes are checked for manufacturing preparation.

Specification Confirmation

Important details such as material, thickness, copper, solder-mask colour, legend colour, surface finish and quantity should be confirmed.

Board Profile and Drill Checks

The board outline, cut-outs, slots and hole data should match the approved requirement.

Electrical Testing

Electrical testing may be carried out where it is included in the confirmed quotation and agreed order scope.

Visual Inspection

The finished boards may be checked for visible manufacturing issues, board profile, solder-mask condition, legend and general workmanship.

Final Quantity and Packing Check

The completed order should be counted and packed appropriately before dispatch.

The final quality-control process depends on the board type, order specifications and agreed manufacturing requirements.

Information Required for a PCB Quotation

To receive an accurate quotation, send the following information:

• Gerber ZIP file
• Required PCB quantity
• PCB length and width
• Layer count
• Base material
• Board thickness
• Copper thickness
• Solder-mask colour
• Legend colour
• Surface finish
• Individual PCB or panel format
• Panel rows and columns, if applicable
• CNC routing, V-scoring, punching or other profiling requirement
• Required delivery schedule
• Delivery city and postal code
• Special technical instructions

Incomplete information may delay the quotation because clarification will be required.
